GN Laser CT Series 500W-1500W Fiber Laser Cutting Machine For Pipe Fabrication

FOB Reference Price:Get Latest Price
  • 1 - 9
    US $127800.00
  • >=10
    US $75442.00
Supply Ability:
50 Set/Sets per Month
Port:
Wuhan
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal, carbon / mild / stainless / ss/ ms /cs/ brass/ copper/ aluminum /Ti
Cutting Thickness:
0-16mm
Cutting Area:
1500*3000mm
Cutting Speed:
0-28 m/m
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
NcEditor/Cypcut/Beckoff/PA
Graphic Format Supported:
AI, DWG, DXF, DXP, PLT
Place of Origin:
Hubei, China (Mainland)
Brand Name:
GN Laser
Model Number:
GN-NCF
Certification:
CE, SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Laser Source:
IPG/SPI/RAYCUS/MAXPHOTONIX/NLIGHT
Control software:
NcEditor(Cypcut/beckoff as option)
Gas Control System:
SMC
Servo Motor:
Yaskawa (Delta/Siemens as option)
Laser Head:
Raytools ( Lasermech/Presitec as Option)
System Language:
English/Chinese
Electricl Components:
Schneider
Color:
Black&Red (can be customized)
Laser power:
500W / 700W/ 1000W /1500W
Function:
Cutting Metal Materials

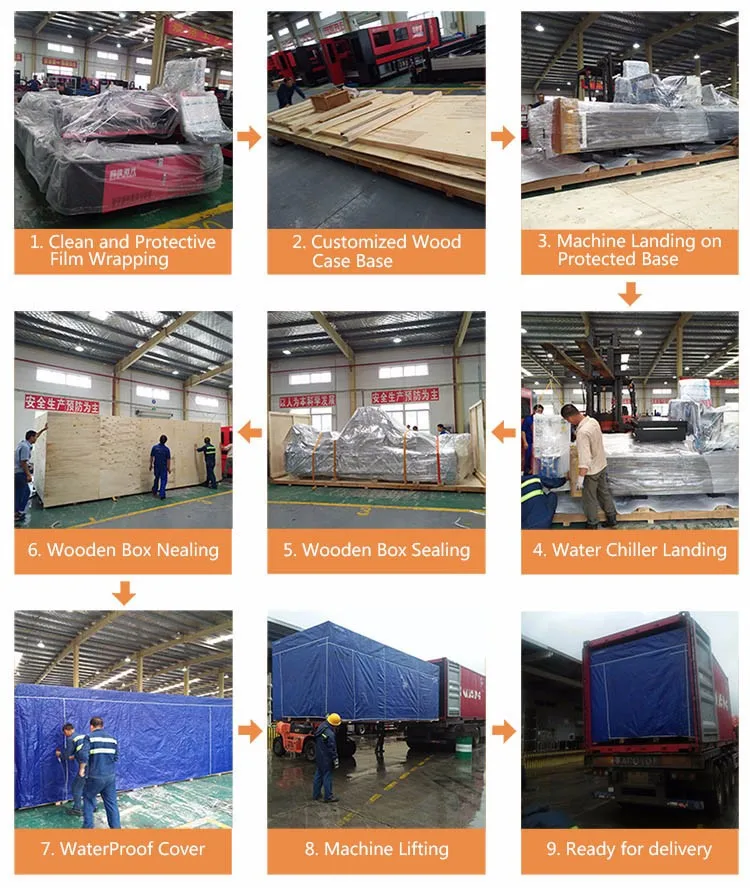

Packaging & Delivery
Packaging Details
1.Wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm jack,convenient to Handling and transport.
Delivery Time
15-45 working days
Machine Introduction
Technical Parameter
Products Name
GN Laser TP Series 500W-1500W Fiber Laser Cutting Machine For Pipe Fabrication
Power
500W
750W
1000W
1500W
Working Area
Length of Pipe: 3M, 6M, 12M, 18M.
Diameter of Pipe: 150mm, 200mm, 300mm, 400mm.
Drive Mode
Servo Motor
Servo Motor
Servo Motor
Servo Motor
Cooling Mode
Water Cooling
Water Cooling
Water Cooling
Water Cooling
Positioning Accuracy
<0.03mm
<0.03mm
<0.03mm
<0.03mm
Repeatability Accuracy
<0.02
<0.02
<0.02
<0.02
Min Kerf
0.01 mm
0.01 mm
0.01 mm
0.01 mm
Axis Travel Speed
40 m/m
40 m/m
40 m/m
40 m/m
Other Machine You Might Interesting
CFD - Seriers
NCF - Seriers
TPF-E Seriers
TPF Seriers
Sheet Laser Cutting with Exchange Pallet
Sheet laser cutting witn single Pallet
Tube and exchange table Sheet Cutting
Pipe and sheet laser cutting machine
Customer Feedback

Other feedback from our users.

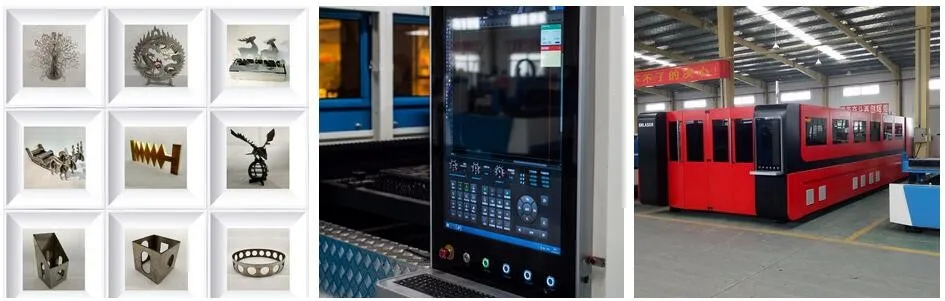

Metal Fabrication

High-end SS fence

Steel screen & indoor decoration

Quality control


Wuhan GN Laser Equipment Manufacturing Co., Ltd. Which specializes in research, development, production and marketing of professional laser equipment, is an integrative team with a group of professionals in fields of mechanism, electronic, industrial automatization and computer software.we are innovative pioneers who offers comprehensive laser application solution and the laser equipment for the domestic and overseas customers.
Here shows how our GN laser making the machine for you- GN Laser TP Series 500W-1500W Fiber Laser Cutting Machine For Pipe Fabrication

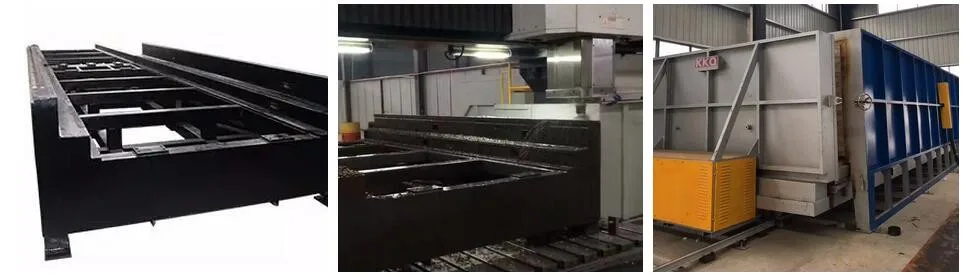

1. Adopt high standard bridge type frame structure.
2. Orginal designed type of welded structure with square tube and steel sheet

1. Adopt no breaking processing by large gantry milling machine.
2. Highly improved the shock resistance, rigidity and stability.

1. High temperature annealing process by large annealing furnace.
2. Ibrating Stress Relief by high temperature

1. Natural cooling

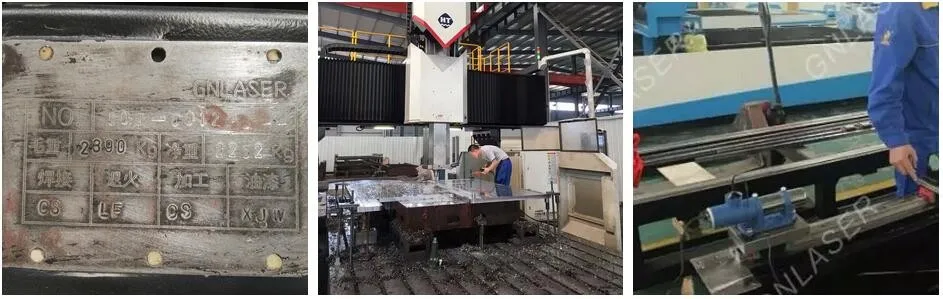

2. Code symbol stamp

1. Quality inspection
2. The guild rail fitting surface processed by large gantry milling machine

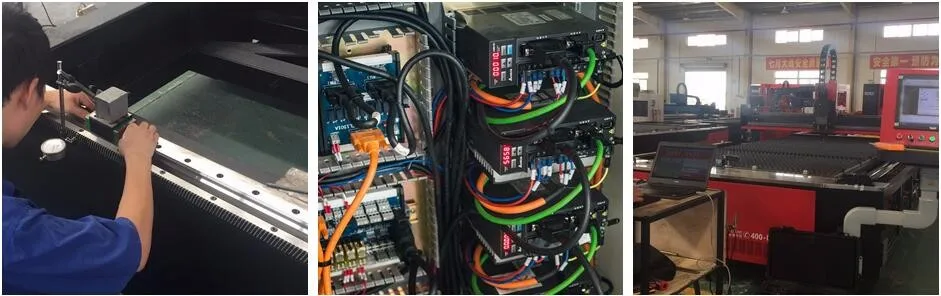

1. Machine assembling process
2. Checking the flatness of the guide rail surface by laser collimator

1. Surface treatment
2. Install the guide rail and gear rack
3. centimeter check

1.Apparatus assemble according to the drawing

1. Precision inspection
2. Check the machine precision by laser interferometer

1. Cutting test of the model
2. Test of the machine precision
3. Recording of the cutting data

1. Continuously test for 48 hours and report data before shipping to proving the security of the machine

1. Packing the machine by standard export package.
2. Ready to shipping.

Packing & Delivering
FAQ

What's the guarantee?

All GN Laser's machine we provide life long after-sale service.

24 Hours online to Solve all your question.


Do You Arrange Shipment ?

Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.

What's the payment?

Most of our customer prefer T/T 50% advanced and balanced 50% before shipiment.

Also can do payment according to customer's country policy.

How long is the delivery time?

For standard machines, it would be 25-45 working days; Customized machines will be confirmed with our technician.

How about the documents after machine shipped?

All original documents with some blanket paper with GN LASER Sealed file will be sent to you.

What's the life time of Spare Parts?

1. Protect lens: 100-300H
2. Nozzle: 300-600H.
3. Fillter: 1-6 Month
