china supplier 1000w automatic pipe cutter

FOB Reference Price:Get Latest Price
  • 1 - 1
    US $170000.00
  • >=2
    US $70000.00
Supply Ability:
100 Set/Sets per Month
Port:
Wuhan
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Laser Type:
Fiber Laser, Fiber
Applicable Material:
Metal
Cutting Thickness:
1-6
Cutting Area:
3000*1500
Cutting Speed:
10-200 mm/s
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
NCStudio
Graphic Format Supported:
AI, DST, DWG, DXF, DXP, PLT
Place of Origin:
Hubei, China (Mainland)
Brand Name:
GN Laser
Model Number:
NCF-3015
Certification:
CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided:
Engineers available to service machinery overseas
Laser source:
Raycus
Laser power:
500-1000W
Function:
Cutting Metal Materials
Color:
Red and Blace
After Sale:
Overseas
Servo Motor:
Yaskawa
GearBox:
Shimpo
Guide Rail:
Hiwin
Grear & Rack:
YYC
Packaging & Delivery
Packaging Details
2 Wooden Box
1 20"GP
Delivery Time
30 working days
Technical Parameters
Model
GN-NCF type
GN-CFD type
GN-TPF type
GN-CT type
Cutting Range

1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m

1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m
1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m
Length: 3m -12m
Dia: 20mm- 160mm
Laser Output Power
500w-8000w
Laser Type
Fiber Laser
Max Moving Speed
70m/min
Max Cutting Speed:
20m/min
Cutting accuracy
≤ ± 0.03 mm/1000mm
Driving Mode
Double gear rack driving
Cooling Type
Water Cooling

Hot sale 1

GN-CFD3015-1000W-8000W


1. 32 inch one-piece operating system, integrate monitor, display, control panel into one, highly improved the user experience.
2. Automatic pallet changer performs table changing in 7 second ensure steady operating and easy access.
3. Enclosed protective cover, increased the security and environmental protection

Hot sale 2

GN-NCF3015-500W-1500W


1. The life time of key parts can reach 100000hours.
2. Precise rack bilateral servo motor driving system with highest response speed, empty travel reach to 70m/mn
3. The most advanced laser source with high photoelectric conversion efficiency rate up to 30%.

Custom-made type 1

GN-TPF3015-500W-1500W


1. Can process not only metal sheet but also tubes, flexible and versatile

2. Support extremely accurate and complex cut-future or geometry on tubes.

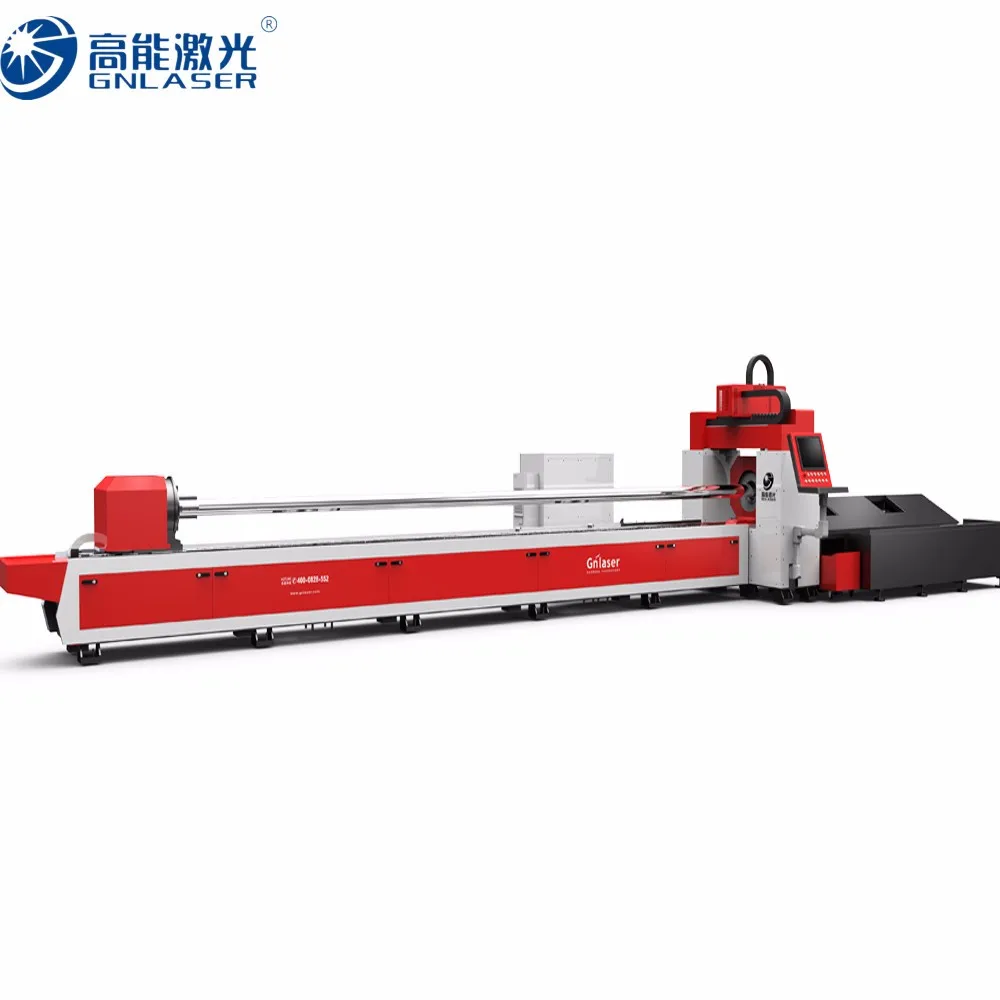

Custom-made type 2

GN-CT6000-500W-1500W



1. The most professional tube cutting machine
2.
It can also cut interesting line to allow two tubes join together(two round tubes).
3. Support extremely accurate and complex cut-future or geometry on tubes.


The Main Parts

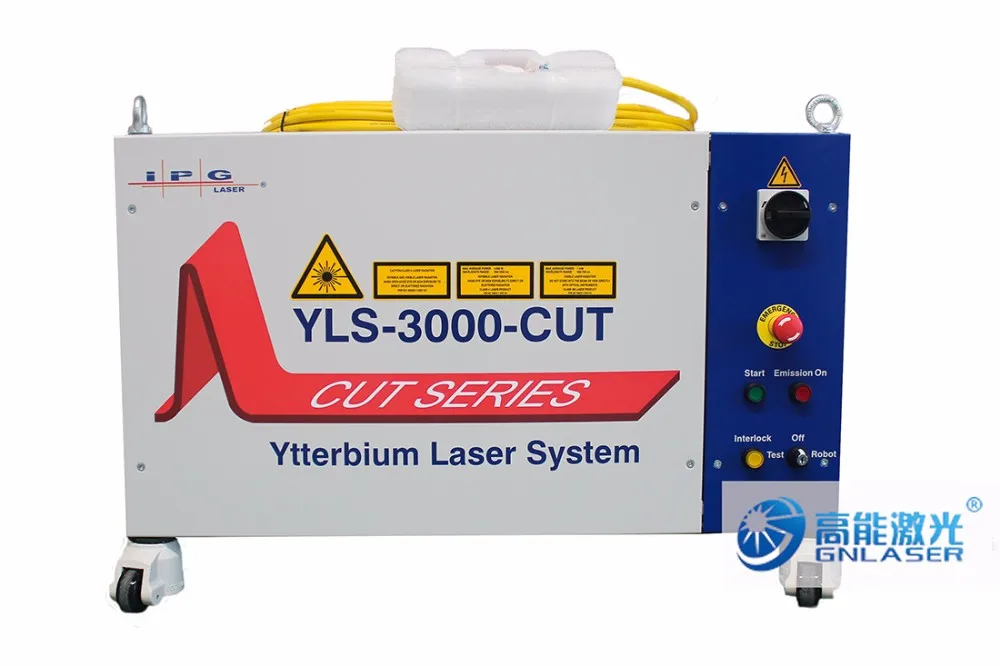

Laser Source

1. IPG, Trumpf-SPI, Raycus

2. No matter Chinese brand or imported brand, we only choose the first class!

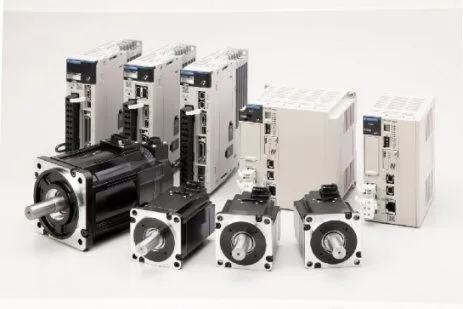

Servo Motor

1. Fast responding ability

2. High accuracy

3. Excellent performance with large torque


Laser cutting head

1. Swiss brand

2. Support a variety of optical fiber interface, can be fit with all kinds of laser source


Quality Control

Strict quality control of every details, ensure customer a high quality fiber laser cutting machine


1. Adopt high standard bridge type frame structure.

2.Orginal designed type of welded structure with square tube and steel sheet


1.  Adopt no breaking processing by large gantry milling machine.

2. Highly improved the shock resistance, rigidity and stability.


1. High temperature annealing process by large  annealing furnace.

2.  Vibrating Stress Relief by high temperature

Natural cooling

Code symbol stamp

The guild rail fitting surface processed by large gantry milling machine

Checking the flatness of the guide rail surface by laser collimator


1. The surface treatment

2. Centimeter check after installing the guide rail and gear rack


Check the machine precision by laser interferometer


1. Cutting test of the model

2. Continuously test for 48 hours to proving the machine security

Package & Delivery

We choose the high standard export package, ensure you truly water proof & dampproof & rust proof package!

Step 1

protective film wrapping

Step 2

Tin foil cover

Step 3

Desiccant dampproof & Tin foil sealing and vaccum supply

Step 4

Plastic packing again

Step 5

Fumigation wooden case

Step 6

Water proof cloth

Customer Feedback

Parts of applications of fiber laser cutting machine

Metal Fabrication

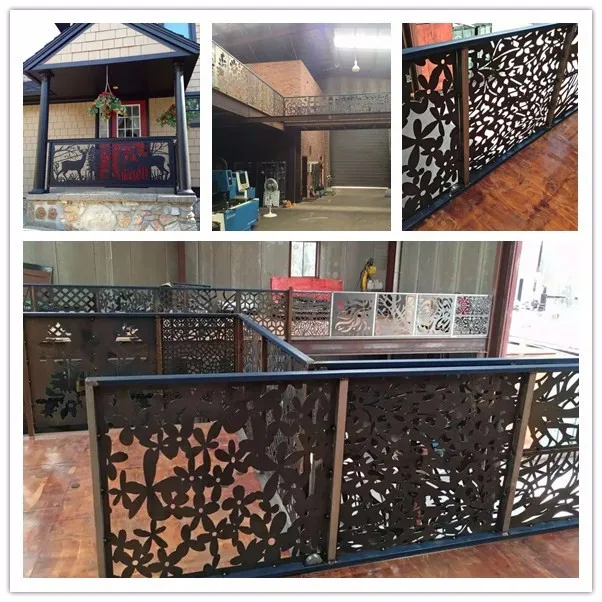

High-end SS fence

Steel screen & indoor decoration

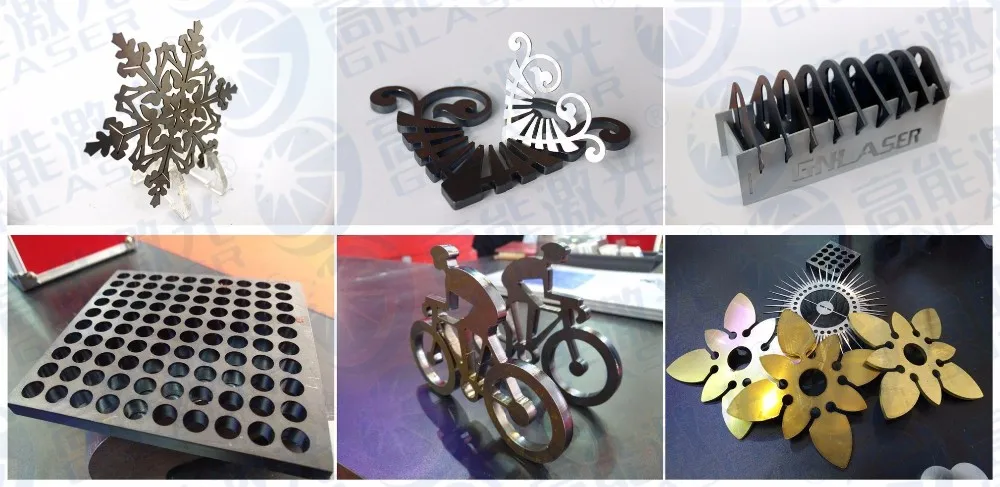

Cutting Samples Show
Please note that the different materials, the purity of the assistant gas will influence cutting data a lot. The surface impurities, uniformity and flatness of the material also have great impact on the data, please consult us for more details.
Service & Support

Pre-Sale Services

1. 24 hours online wait for you

2. support all kinds of technology solution, laser equipment technology question inquiry, sample testing, model reference, quotation, etc.

3. warmly welcome your visiting

After Sales Services

1. provide on-site technical training service or one week training at buyer's site free

2. 1 year warranty for whole equipment, 2 years warranty for laser source

3. Supply lifetime repair service and offer software upgrade in time.

Certificate

Our products past CE and FDA certification, of which many obtain National intellectual Property Patent Certificate
