1500W laser metal cutting sewing machine usha and price

FOB Reference Price:Get Latest Price
US $110,000-124,000 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
3000*1500mm
Cutting Speed:
0-10.8m/m
Graphic Format Supported:
AI, DXF, PLT, NC
Condition:
New
Cutting Thickness:
0-16mm, 0-16mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
NCStudio
Place of Origin:
Hubei, China (Mainland)
Brand Name:
GN Laser
Model Number:
GN-NCF-3015-1500W
Certification:
CE, ISO, SGS
Laser power:
1500w
Color:
Red&black also can be customized
Power supply:
AC 380V+/-5% 50HZ
Driving system:
Imported Servo Motor
Function:
Cutting Metal Materials
Model:
Fiber Laser Cutting Machine for metal steel sheets
Driving Mechanism:
Gear & Rack
After-sales Service Provided::
Engineers available to service machinery overseas
Name:
GN-Laser Fiber Laser Cutting Machine for metal steel sheets
After-sales Service Provided:
Overseas service center available
Supply Ability
Supply Ability:
80 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Wooden case is after fumigation treatment.Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by soft materials,mainly using pearl wool.
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm jack,convenient to Handling and transport.
Port
Wuhan
Lead Time :
Shipped in 30 days after payment

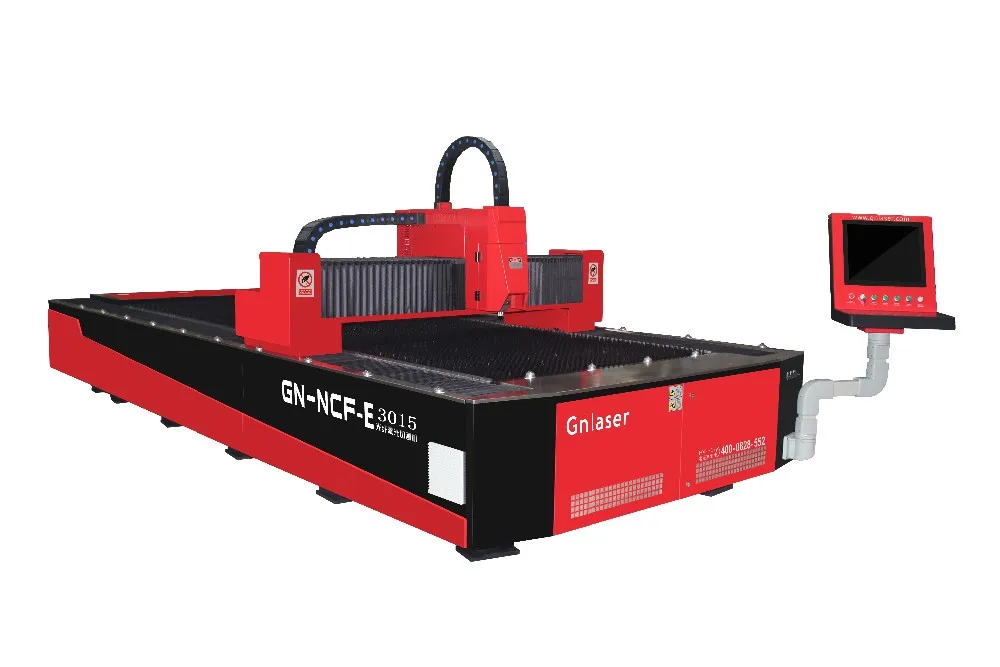

Product Description

This metal sheet cutting is popular in various fields such as advertising trademark, advertising character, High/low voltage electrical cabinet, mechanism parts, kitchenware, cars, mechanical, metal craftwork, saw blade,and so on. It is able to various metals like Stainless steel, carbon steel, alloy steel, spring steel, aluminum, aluminum alloy, galvanized sheet, Pickling plate, copper, silver, gold, titanium and other metal sheet, pipes and tubes .The fiber laser is a new development of a new type of solid state lasers , it has a large cooling area , good beam quality , compact structure.Fiber lasers due to the optical path can be coiled , the optical path space is smaller , in the case of using single core junction semiconductor pump lasers do the pump source , the pump laser may be dispersed installation ,and has good heat dissipation characteristics , in the mounting density is not high case, the can is cooled by air ,and in the case of higher mounting density , only a small amount through the water to meet the cooling requirements therefore, the volume of the all-fiber laser is smaller than the same output power of the gas and the solid-state laser system , the weight lighter.

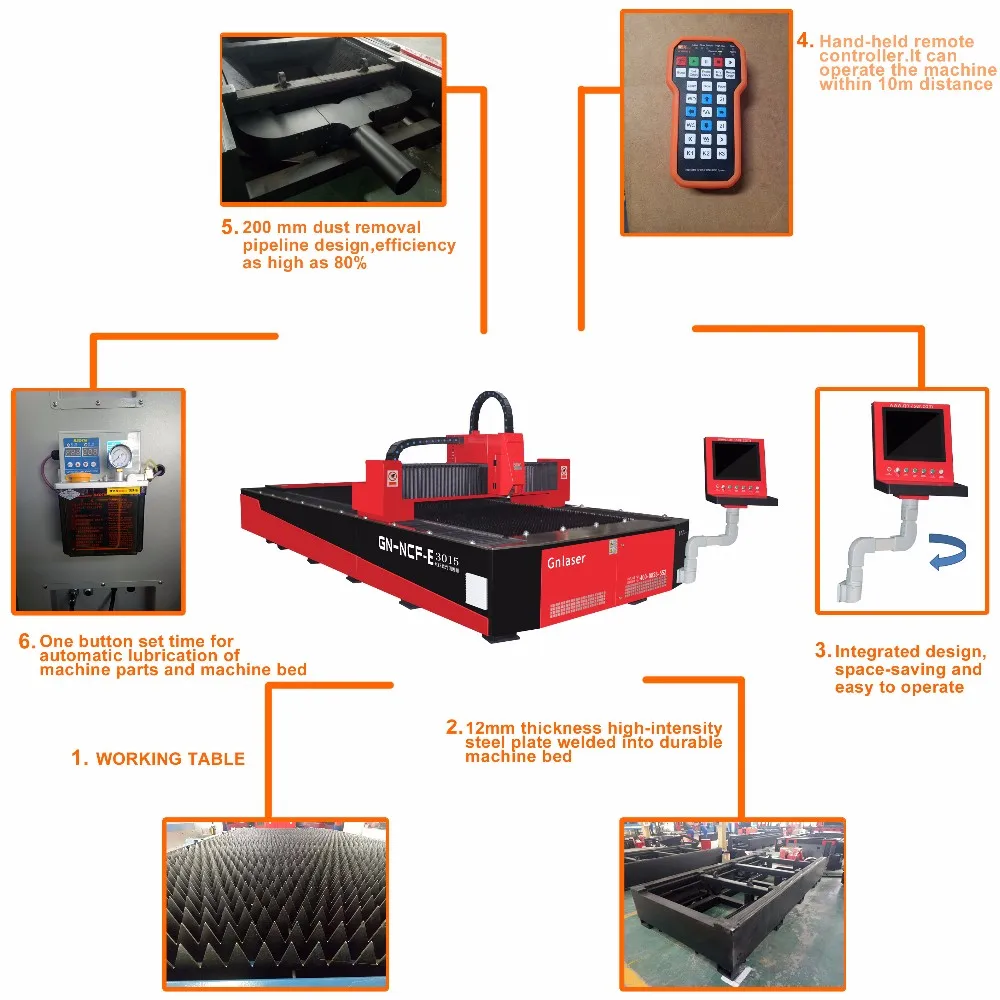

1.The machine uses a moving gantry structure , imported high-precision screw and linear guide ,smooth transmission, high precision .


2.Bed with the moving beam as a whole welded structure , roughing after annealing , and then the vibration aging treatment , can completely eliminate the stress of welding and machining ,good rigidity, high accuracy can be maintained for a long time does not deform .


3.X, Y, Z axes are imported from Japan servo motor , high-precision , high- speed , high-torque , high inertia , stable performance and durable . Ensure the machine's high speed and acceleration.


4.Using many laser cutting control special function modules , powerful , human machine interface , easy to operate based on the Windows operating system , fiber laser cutting machine CNC system integrated.


5.Independent research and development of personalized nesting software , CNC cutting machine to achieve " full-time cutting , efficient cutting and high nesting rate cut " core technology is the fundamental guarantee of effective material savings , improve cutting efficiency.

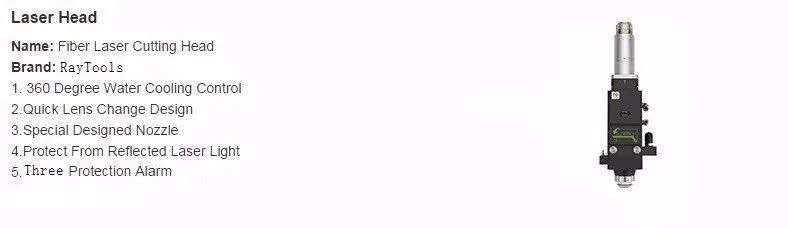

6.Cutting fiber laser head selection U.S. Lasermech produced special cutting head , and capacitive sensing , induction of high precision and responsive , the most stable and reliable performance.


7.Imported high precision electronic control proportional valve , precise control of the cutting auxiliary gas pressure ,in order to achieve the best cutting results.

Our Cooperative Partner

Technical Parameters
Model
NCF3015
NCF4020
NCF6020
Cutting Range
1500*3000mm
2000*4000mm
2000*6000mm
Laser Output Power
500w/700W/1000w/1500w/2000w/3000w
Laser Type
Fiber Laser
Max Moving Speed
70m/min
Max Cutting Speed:
20m/min
Cutting accuracy
≤ ± 0.03 mm/1000mm
Driving Mode
Double ball screw driving / Double gear rack driving
Protection System
Enclosure protection
Cooling Type
Water Cooling
Software
GN Laser Cutting Software, Metal Nesting Software
Supported Format
PLT, DXF, BMP, AI, DST, DWG, etc.

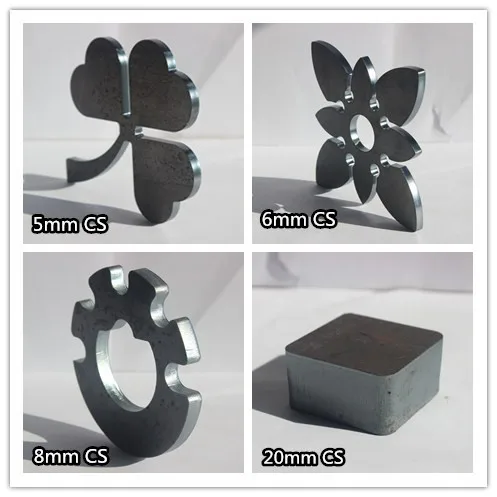

Max. sheet thickness

Model
500W
700W
1000W
Mild Steel
6mm
8mm
10mm
Stainless steel
3mm
4mm
6mm
Aluminum
1mm
2mm
3mm
Copper
1mm
1.5mm
2mm
Galvanized Sheet
2mm
2.5mm
3mm
Package & Delivery

We choose the high standard export package, ensure you truly water proof & dampproof & rust proof package!

Step 1

protective film wrapping

Step 2

Tin foil cover

Step 3

Desiccant dampproof & Tin foil sealing and vaccum supply

Step 4

Plastic packing again

Step 5

Fumigation wooden case

Step 6

Water proof cloth

Company Information

WUHAN Gnlaser Equipent Manufacturing CO.,LTD specializes in the research development Production and markeing of professional laser equipment .We have an integrative team of many experts in filelds of mechanism optoelectronics Industrial automatization and software development.With pioneering spirt and innovative mind.We dedicate to providing best laser application solution for domestic and foreign customers

Gnlaser has always been at the forefront of technology.We have our own core technology R & D team, received a number of patented technologies.And to establish a long-term cooperative relationship with TRUMPF, SPI, IPG, SIEMENS, Mark and other international well-known brand leize. Each machine from manufacturing to delivery, through technology, production, quality inspection and other multiple testing.

Certifications
Our Service

Pre-sale Service

1.Sample free support.

We will supply testing report with video or photos upon you request.

2.Visit our factory.

We cordially welcome customers to visit our factory, you will be served with professional reception staff, convenience for your catering and ticket booking.

On-Purchase Service

Free Training course.

1.The buyer's operator will be trained for more than 4 days in the seller's training and repairing center till he/she master basic knowledge on machine usage.

2.send technician to install and adjust machine

After-sale service

Two Years Warranty

We ahere to the principle of centering customer's demand to provide customers with a complete set of service including:

Machine Installation

Commissioning

Training

Repairing

and other services customers needed.
