1000w fiber laser metal cutting machine for galvanized steel pipe

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $80000.00
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal
Cutting Thickness:
0-12mm
Cutting Area:
1500*3000mm
Cutting Speed:
0-40000mm/min
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Lasercut
Graphic Format Supported:
AI, BMP, DWG, DXF, PLT
Place of Origin:
Hubei, China (Mainland)
Brand Name:
GNLASER
Model Number:
GN-NCF3015
Certification:
CCC, CE, ISO, SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Laser power:
500w 700w 1000w 1kw
Name:
GN-NCF3015-700W 500W 1kw
Type:
Fiber laser
Working area:
1500mmX3000mm
Laser source:
Fiber Laser IPG-700W 500w Raycus
Max cutting thickness:
8mm thick
Max moving speed:
100m/min
Machine video and picture:
Available
Language:
English and Chinese Optional
Package:
Plywood Case
SupplyAbility
SupplyAbility:
100 Set/Sets per Quarter
Packaging & Delivery
Packaging Details
Packaging Details:
1.Whole film packaging machine;
2.Anti-collision package edge;
3.Fumigation-free plywood wooden box with iron binding belt.
Port
Wuhan
Lead Time :
Shipped in 30 days after payment
Technical Parameters
Model
GN-NCF type
GN-CFD type
GN-TPF type
GN-CT type
Cutting Range

1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m

1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m
1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m
Length: 3m -12m
Dia: 20mm- 160mm
Laser Output Power
500w-8000w
Laser Type
Fiber Laser
Max Moving Speed
70m/min
Max Cutting Speed:
20m/min
Cutting accuracy
≤ ± 0.03 mm/1000mm
Driving Mode
Double gear rack driving
Cooling Type
Water Cooling

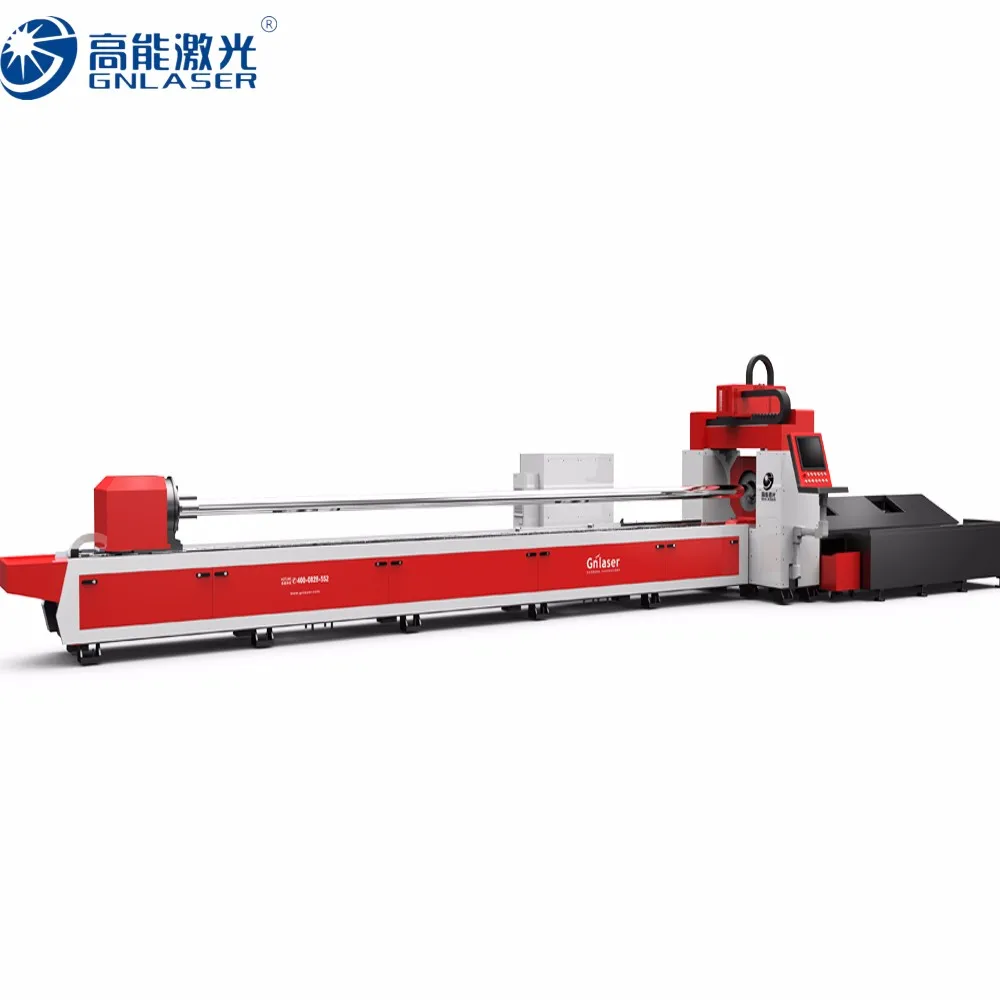

Hot Sale--GN-CT6000 tube laser cutting machine

Main Features

1. Automatic loading system

without human intervention

2. Advanced control system

able to cut complex shape

3. World leading brand


IPG TRUMPF SPI laser source

4. Low energy consumption

High output and low manpower investment

5. Fast cutting speed

suitable for high-speed continuous production lines

6. Advanced chuck clamping system

Chuck center self-adjustment


Hot sale 1

GN-CFD3015-1000W-8000W


1. 32 inch one-piece operating system, integrate monitor, display, control panel into one, highly improved the user experience.
2. Automatic pallet changer performs table changing in 7 second ensure steady operating and easy access.
3. Enclosed protective cover, increased the security and environmental protection

Hot sale 2

GN-NCF3015-500W-1500W


1. The life time of key parts can reach 100000hours.
2. Precise rack bilateral servo motor driving system with highest response speed, empty travel reach to 70m/mn
3. The most advanced laser source with high photoelectric conversion efficiency rate up to 30%.

Custom-made type 1

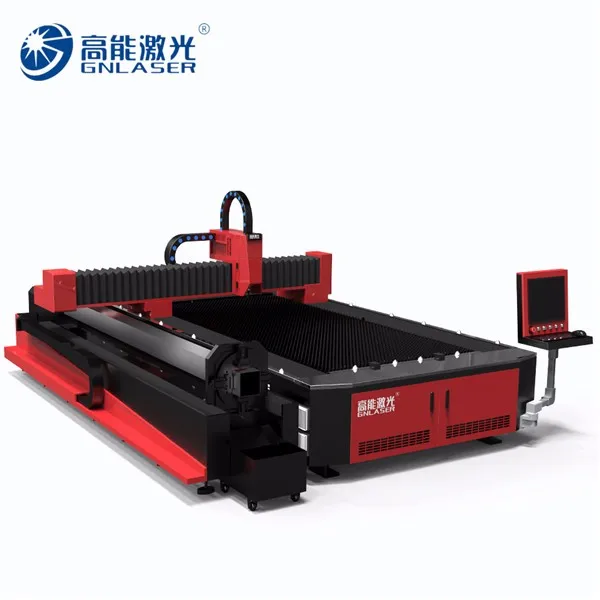

GN-TPF3015-500W-1500W


1. Can process not only metal sheet but also tubes, flexible and versatile

2. Support extremely accurate and complex cut-future or geometry on tubes.

Custom-made type 2

GN-CT6000-500W-1500W



1. The most professional tube cutting machine
2.
It can also cut interesting line to allow two tubes join together(two round tubes).
3. Support extremely accurate and complex cut-future or geometry on tubes.


The Main Parts

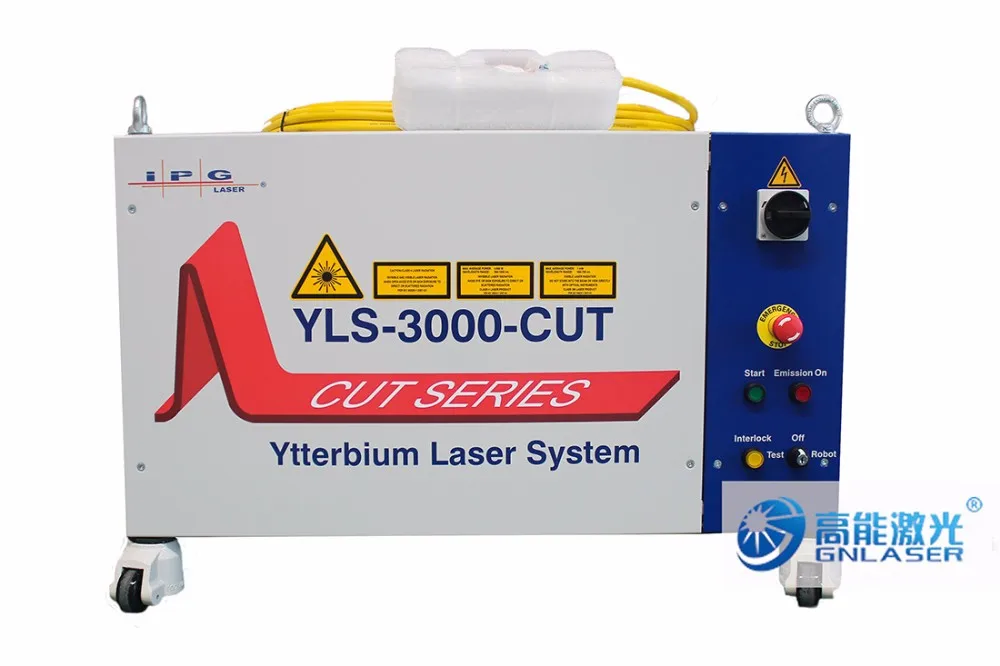

Laser Source

1. IPG, Trumpf-SPI, Raycus

2. No matter Chinese brand or imported brand, we only choose the first class!

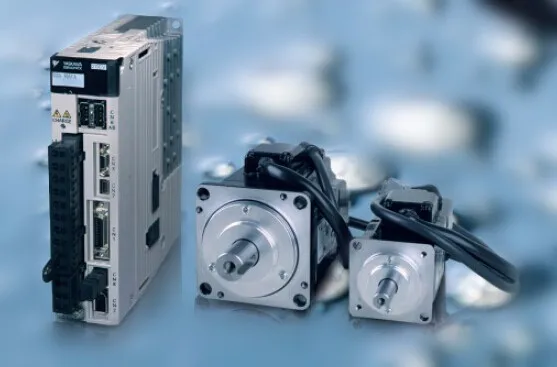

Servo Motor

1. Fast responding ability

2. High accuracy

3. Excellent performance with large torque

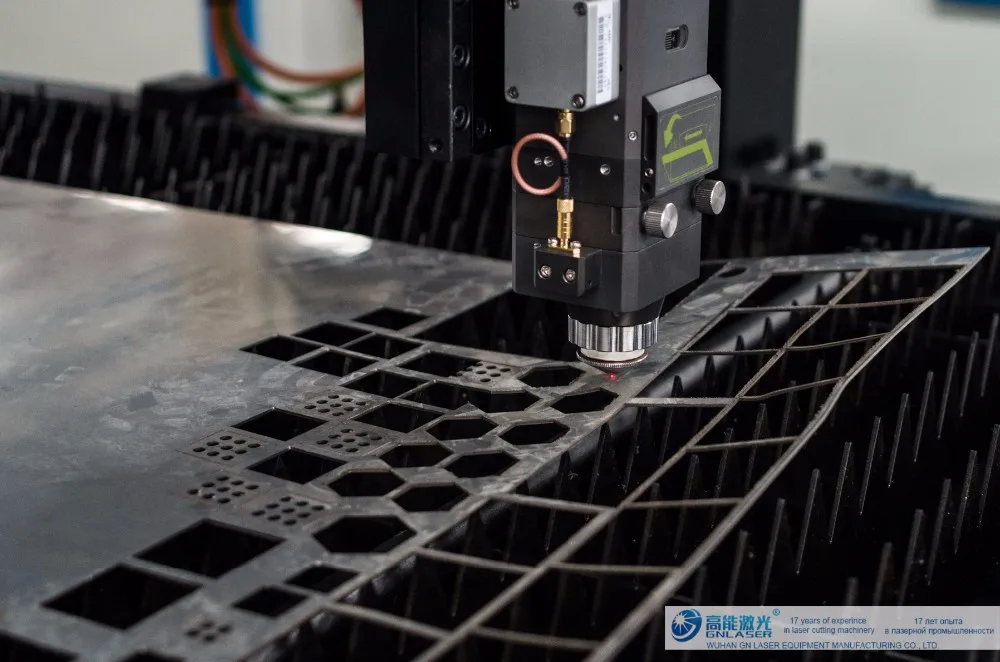

Laser cutting head

1. Swiss brand

2. Support a variety of optical fiber interface, can be fit with all kinds of laser source


Quality Control

Strict quality control of every details, ensure customer a high quality fiber laser cutting machine


1. Adopt high standard bridge type frame structure.

2.Orginal designed type of welded structure with square tube and steel sheet


1.  Adopt no breaking processing by large gantry milling machine.

2. Highly improved the shock resistance, rigidity and stability.


1. High temperature annealing process by large  annealing furnace.

2.  Vibrating Stress Relief by high temperature

Natural cooling

Code symbol stamp

The guild rail fitting surface processed by large gantry milling machine

Checking the flatness of the guide rail surface by laser collimator


1. The surface treatment

2. Centimeter check after installing the guide rail and gear rack

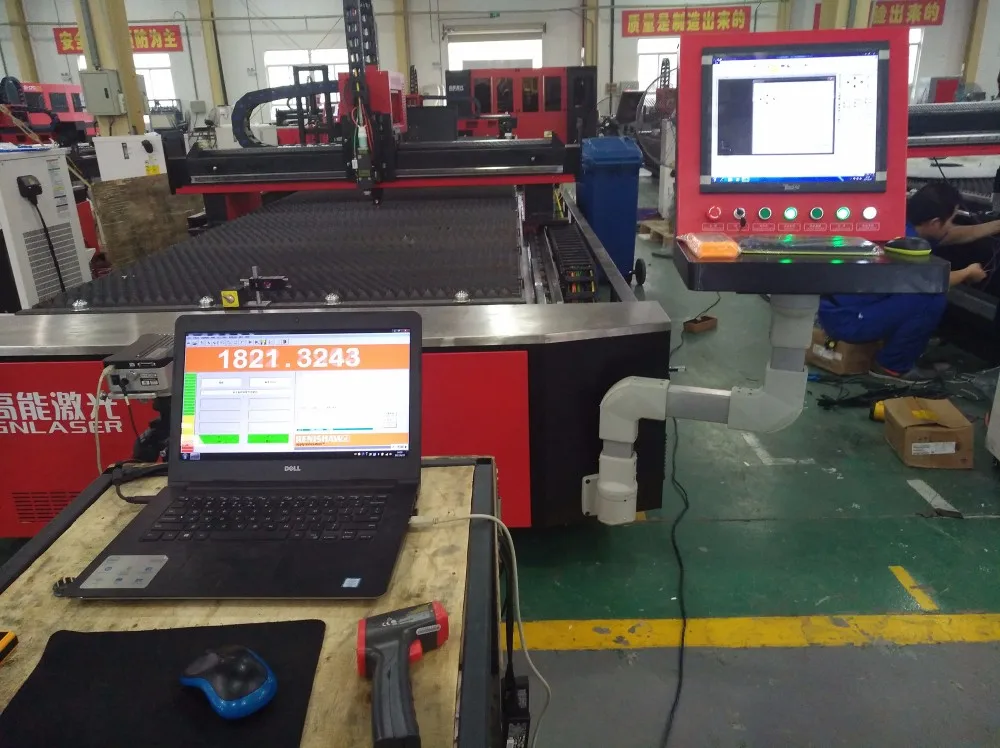

Check the machine precision by laser interferometer


1. Cutting test of the model

2. Continuously test for 48 hours to proving the machine security

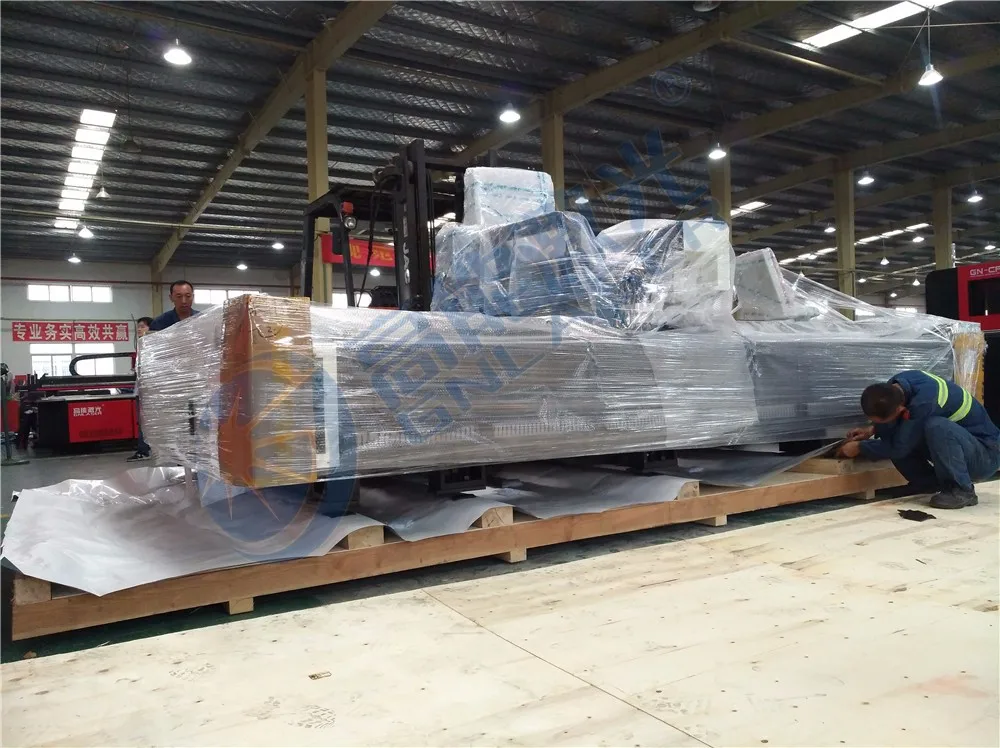

Package & Delivery

We choose the high standard export package, ensure you truly water proof & dampproof & rust proof package!

Step 1

protective film wrapping

Step 2

Tin foil cover

Step 3

Desiccant dampproof & Tin foil sealing and vaccum supply

Step 4

Plastic packing again

Step 5

Fumigation wooden case

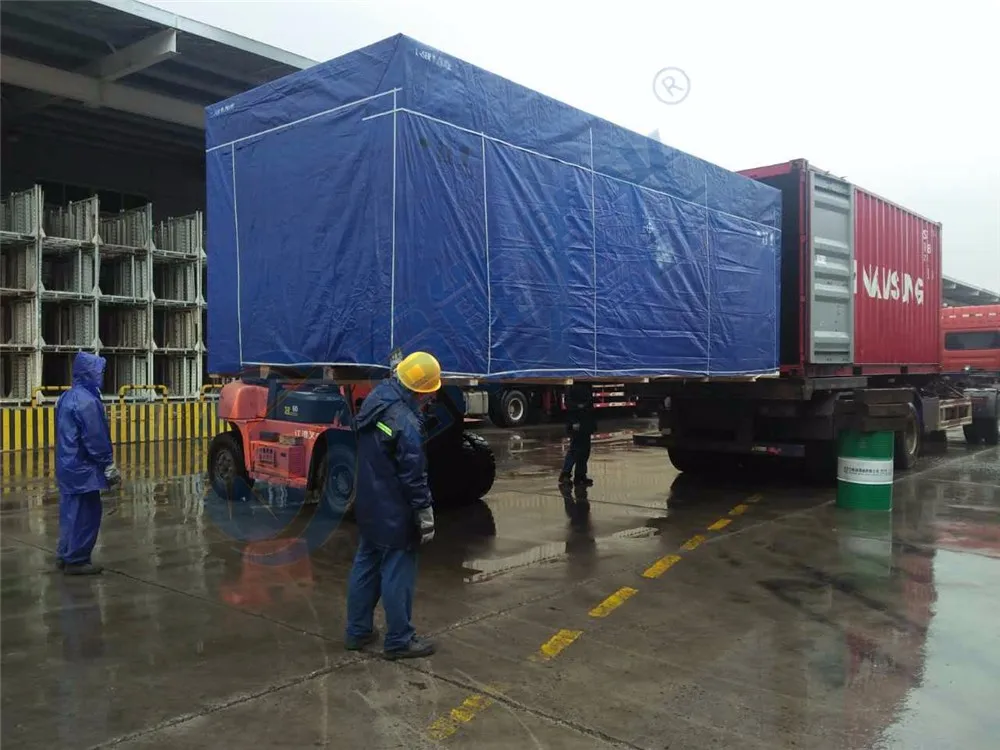

Step 6

Water proof cloth

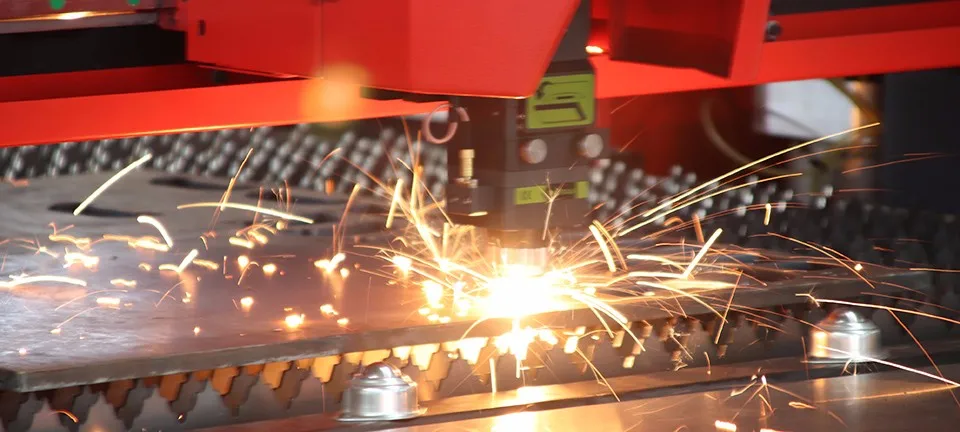

Cutting Samples Show
Please note that the different materials, the purity of the assistant gas will influence cutting data a lot. The surface impurities, uniformity and flatness of the material also have great impact on the data, please consult us for more details.
Certificate

Our products past CE and FDA certification, of which many obtain National intellectual Property Patent Certificate

Service & Support

Pre-Sale Services

1. 24 hours online wait for you

2. support all kinds of technology solution, laser equipment technology question inquiry, sample testing, model reference, quotation, etc.

3. warmly welcome your visiting

After Sales Services

1. provide on-site technical training service or one week training at buyer's site free

2. 1 year warranty for whole equipment, 2 years warranty for laser source

3. Supply lifetime repair service and offer software upgrade in time.

Company

Brief Introduction

Wuhan GN Laser Equipment Manufacturing Co., Ltd. Which specializes in research, development, production and marketing of professional laser equipment.
