500W 700W 1000W 2000W hot sale metal fiber laser cutting machine price for 1mm 2mm 3mm 5mm 6mm 8mm 10mm 12mm Carton Steel

FOB Reference Price:Get Latest Price
  • 3 - 4
    US $182000.00
  • >=5
    US $180000.00
Supply Ability:
75 Set/Sets per Month
Port:
Wuhan
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal
Cutting Thickness:
0-18mm
Cutting Area:
1500*3000mm
Cutting Speed:
0~70m/min
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
NCSTUDIO
Graphic Format Supported:
AI, BMP, DST, DWG, DXF, PLT
Place of Origin:
Hubei, China (Mainland)
Brand Name:
GN LASER
Model Number:
GN-CFD3015-2000W IPG
Certification:
CCC, CE, GS, ISO, SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Color:
Black and Red
Laser Source:
IPG fiber laser
Laser power:
2000W
Function:
sheet metal precision processing
Model:
GN-CFD3015
Geometric Positional Accuracy:
≤0.03mm
Repeated Positional Accuracy:
≤0.02mm
Min Kerf Width:
0.10mm
Cooling Method:
Water Cooling
Power Consumption:
18KW
Packaging & Delivery
Packaging Details
GN-CFD3015-2000W IPG
Packing Material:Thick wooden frame
Container:20GP + 20FR
Front Machine Bed Packing Size: 5580*3150*2160mm
Behind Machine Bed Packing Size: 3800*2200*1200mm
Water Chiller Packing Size: 840*610*1280mm
Delivery Time
30 Working days
Product Description

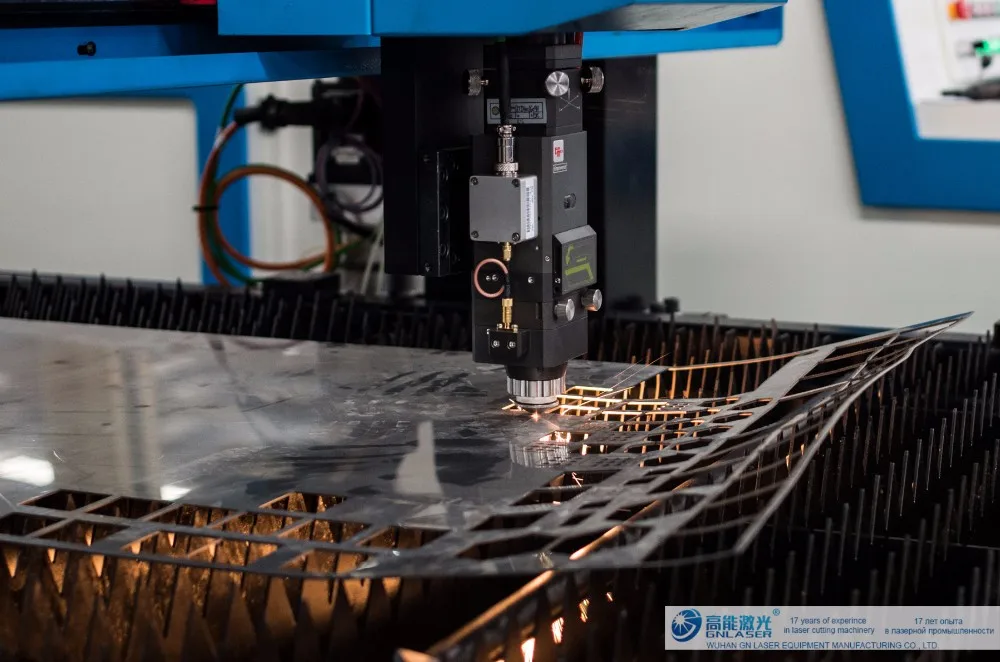

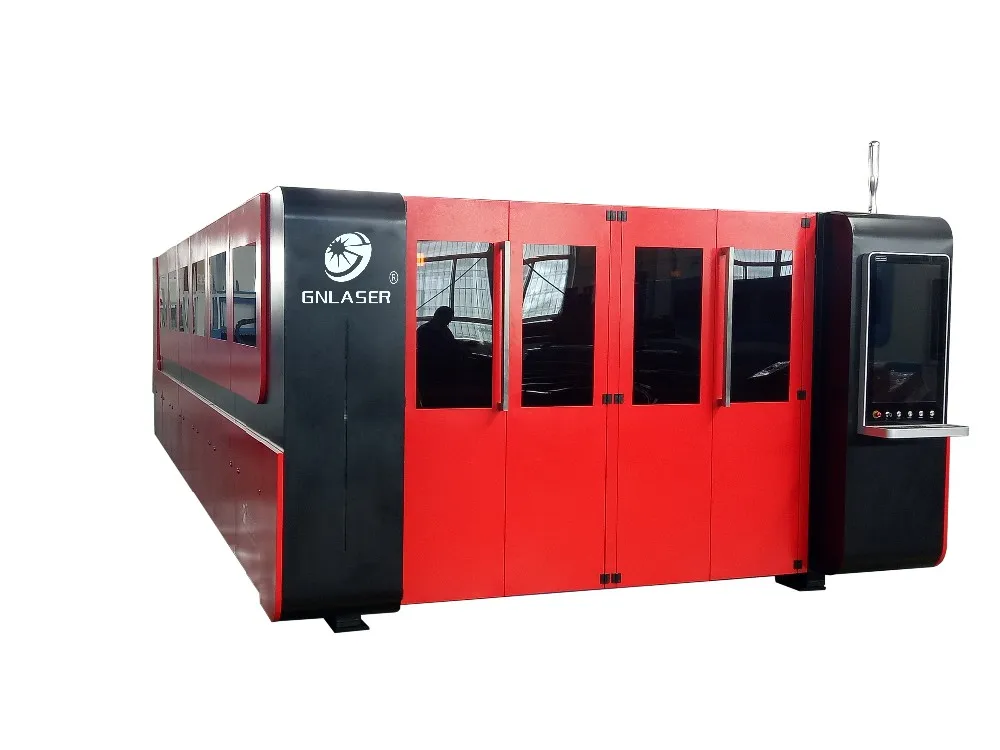

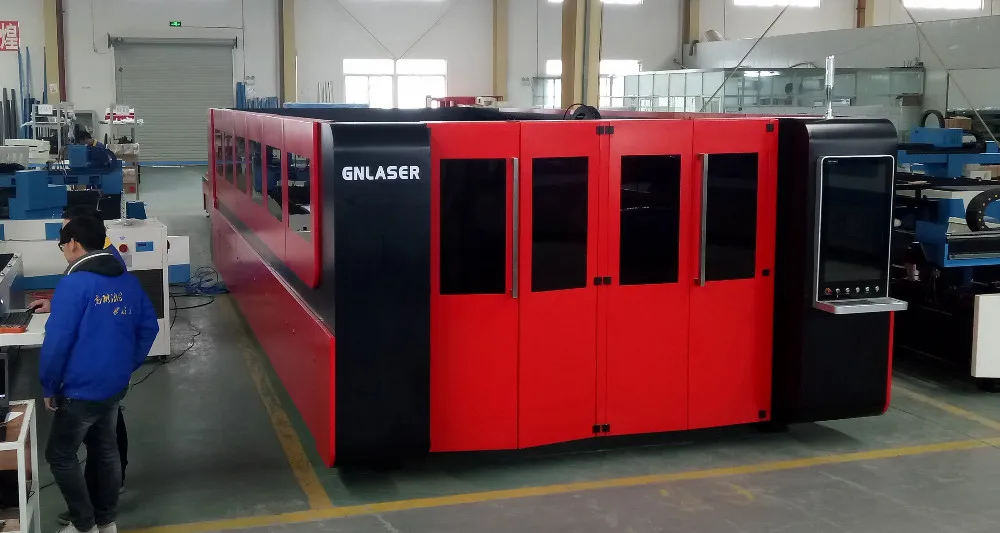

                                   FIBER LASER CUTTING MACHINE MACHINE WITH EXCHANGEABLE PALLET

                                                                               GN-CFD3015 1000W-8000W


GN-CFD-3015 is GNLASER's closed type with exchangeable pallets machine in 2017.More than 1000sets GN-CFD3015 have been running well all around the world.

Model   GN-CFD3015                                                              Max Cutting Thickness   12mm~30mm

Laser Source Type   Imported Fiber Laser Source             Geometric Positional Accuracy   ≤ ± 0.03 mm/1000mm

Laser Wave Length   1070nm                                                  Repeated Positional Accuracy  ≤ ± 0.02 mm

Laser Power   1000W-8000W                                                            Min Kerf Width   0.10mm

Cutting Range(Standard)   3000mm*1500mm                  Cooling Method   Water Cooling

Power Supply   AC 380V ± 5%/50Hz

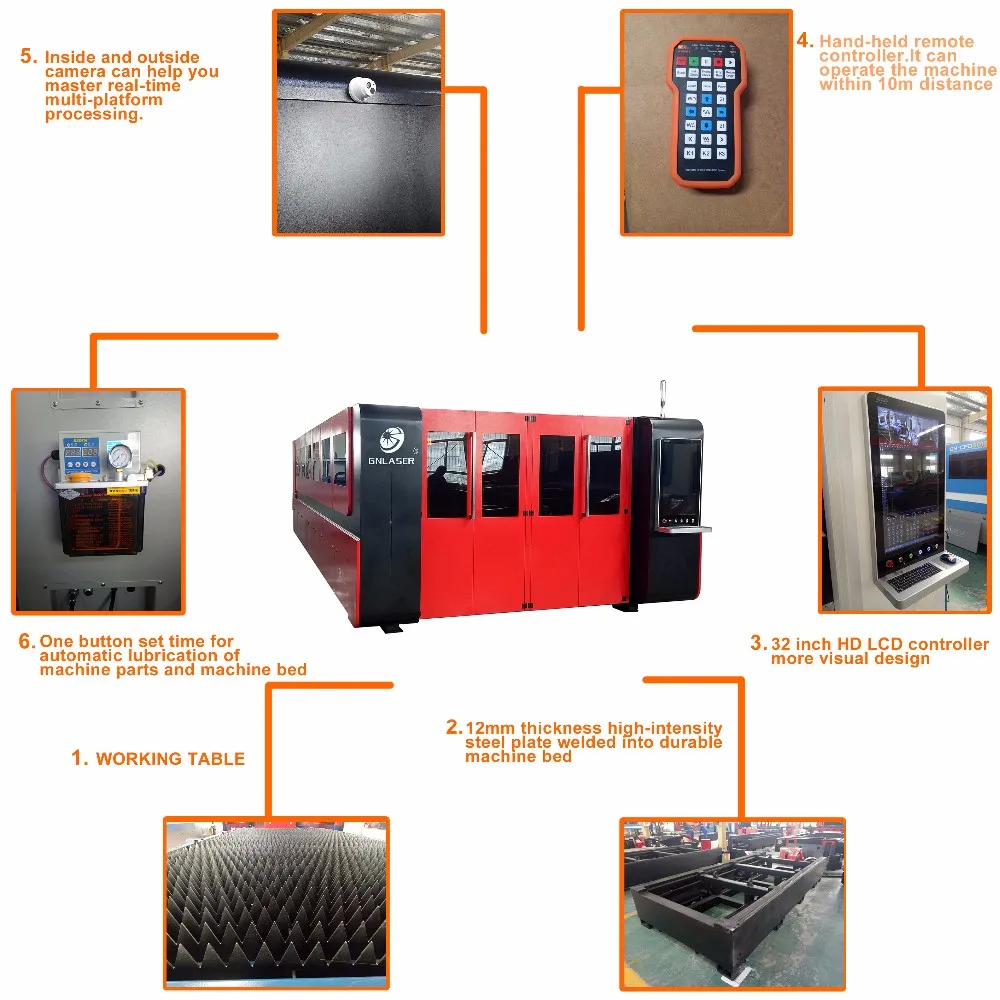

Feature
* The most advanced european laser source with high photoelectric conversion efficiency rate up to 30%.The lifetime of key parts can reach 100000hours;
* Worldwide famous brand Swiss design Raycus laser cutting head,ensure good cutting effects;
* Highly strengthened steel bed annealed to ensure high speed with no deformation;
* Automatic pallet changer performs table changing in 7 seconds ensure steady operating and easy access;
* R&D GN controlling system,easy to operate steadily

Application

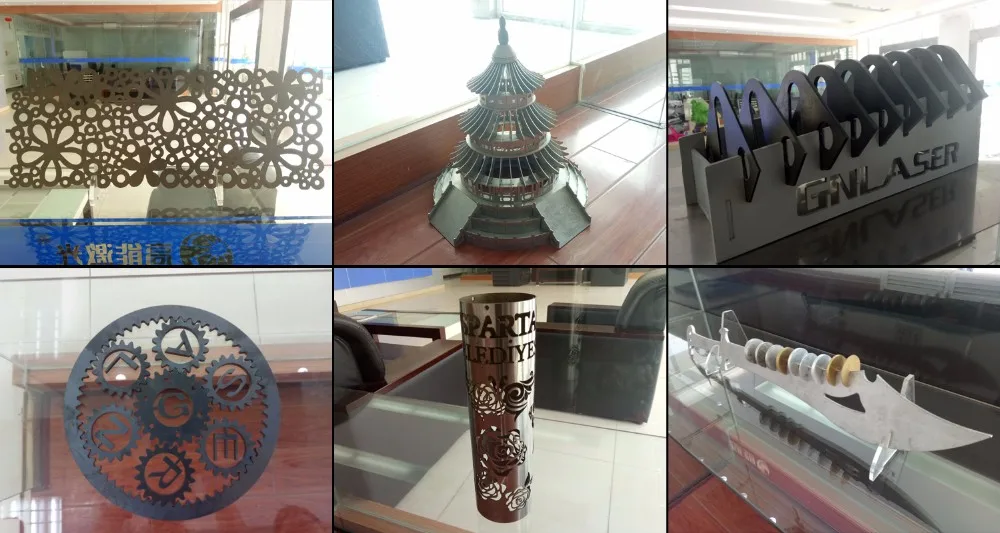

Widely applied to metal-sheet processing,stainless steel decorative engineering,advertising trademark and advertising character,high/low voltage electrical cabinet,Kitchenware,metal craftwork,automatic parts,farm machinery,medical instruments,sports equipment,environmenta protection equipment,elevator apparatus,central air conditioning,hardware tools and gauge etc.


Our Cooperative Partner

Technical Parameters
Model
CFD3015
CFD4020
CFD6020
Cutting Range (length*width)
1500*3000mm
2000*4000mm
2000*6000mm
Laser Source
1000W~8000W IPG fiber laser source

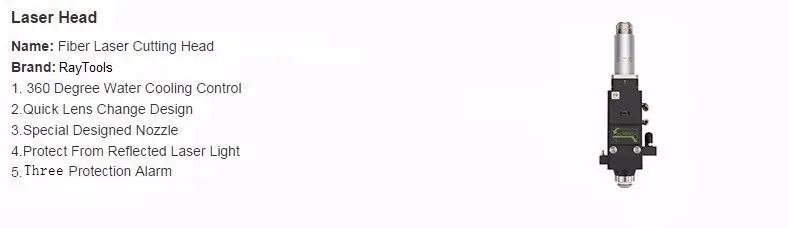

Laser Cutting Head
Swiss design Raytools professional laser cutting head
Rack and Pinion
Taiwan YYC
Guid Rail
Taiwan HIWIN
Servo Motor Driver
Japan YASKAWA Servo Motor Dirver
CNC Control System
Shanghai WEIHONG Controller
Automatic Tracking System
NCstudio automatic tracking system
Machine Bed
Wuhan GN LASER Machine Bed with exchange pallets
Speed Control System
Japan SHIMPO Speed Reducer
Water Chiller
Sanhe Tongfei

Max. sheet thickness

Model
700W
1000W
3000W
Mild Steel
8mm
10mm
20mm
Stainless steel
4mm
6mm
                  10mm
Aluminum
2mm
3mm
6mm
Copper
1.5mm
2mm
6mm
Galvanized Sheet
2.5mm
3mm
6mm
Certifications
Packing & Delivery
Packaging
Size
 20 GP + 20FR
Weight
9000-10000Kg


Packaging Details


1. Front Machine bed + Front Machine bed
2. Control cabinet
3. Laser source
4. Water chiller

Our Service

Pre-sale Service

1.Sample testing support.

We will supply testing report with video or photos upon you request.

2.Visit our factory.

We cordially welcome customers to visit our factory, you will be served with professional reception staff, convenience for your catering and ticket booking.

On-Purchase Service

free training course.

1.The buyer's operator will be trained for more than 4 days in the seller's training and repairing center till he/she master basic knowledge on machine usage.

2.send technician to install and adjust machine

After-sale service

Two Years Warranty

We ahere to the principle of centering customer's demand to provide customers with a complete set of service including:
Machine Installation
Commissioning
Training
Repairing
and other services customers needed.

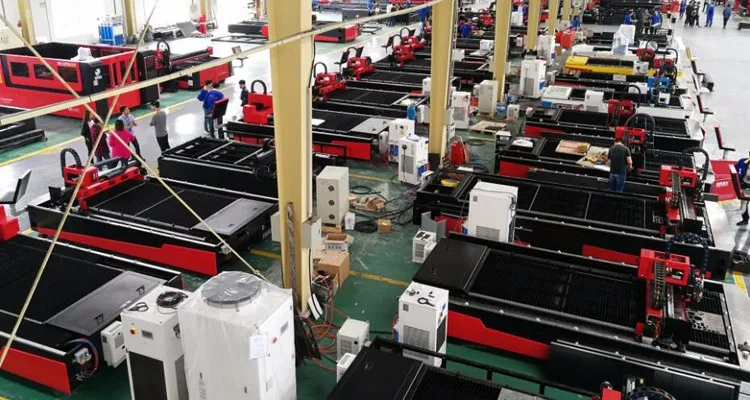

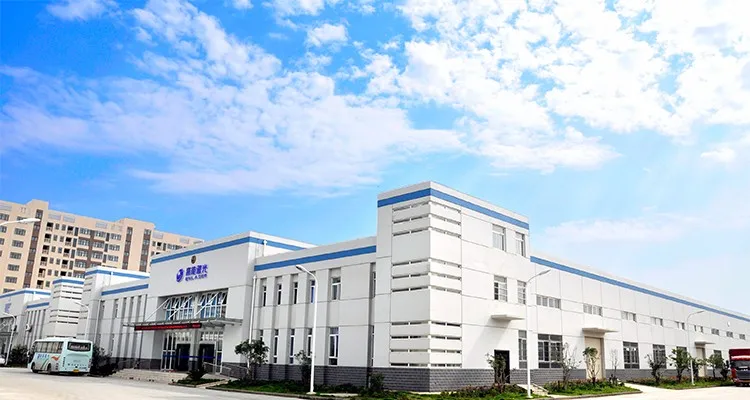

Our Company

18 YEARS EXPERIENCE

Wuhan GNLASER Equipment Manufacturing Co.,Ltd specializes in R&D,producing and marketing of laser equipments since 1999.Over 18 years development,we have an integrative team of many hi-tech elites and experts in mechanism,optoelectronics industrial automation and software development.We implement standardized quality management in key aspects such as purchase,research,produce,inspection and after-sale service,aiming to provide customer with efficient and professionl services.Our products pass CE and FDA certification,of which many obtain National Intellectual Property Patent Certificate.
