Manufacturing 3D Pipe 6m Metal Laser Cutting Machine with IPG Fiber

FOB Reference Price:Get Latest Price
  • >=1 Sets
    US $70000.00
Report Suspicious Activity
Overview
Quick Details
Application:
Laser Cutting
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
6m
Cutting Speed:
10800mm/min
Graphic Format Supported:
AI, DWG, DXF, PLT, Other
Condition:
New
Cutting Thickness:
0-20mm
CNC or Not:
Yes
Cooling Mode:
Water Cooling
Control Software:
Cypcut
Place of Origin:
Hubei, China (Mainland)
Brand Name:
GNLASER
Model Number:
GN-CTF6015
Certification:
CE, SGS
Laser source:
RAYCUS/IPG/SPI
Cut materials:
carbon, zinc, aluminum,copper, ally steel, silicon, galvanized sheet
application:
metal-sheet processing,kichenware,medical instrument,sports equipment
tube type:
round tube, square tube, h type pipe,irregular tube
tube diameter:
20-150mm,others customized
table quality:
Highly strengthened steel bed
driving system:
servo motor and linear rack guide
Laser head:
USA Laser Mech Cutting head
software:
Independent 3D software
loading system:
loading and unloading, feeding system customized
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
10 Set/Sets per Month
Packaging & Delivery
Packaging Details
PLYWOOD
Port
SHANGHAI
Lead Time :
45DAYS
Product Introduction

Self-developed 3d tube laser cutting software, able to cut all shapes of tubes or pipes, such as circle tube, square tube, any other irregular tube.

1. single cavity structure, power upgrade to 850W, more stable performance;
2. equipped with professional double rotatory chucks with four jaws;
3. can produce extremely accurate, and complex laser cut geometry on round ,square, rectangular, and oval tubulasr metarials;
4. can create almost any cut-feature or geometry on tubes, including fish-mouth, profile, copes and slots;
5. can also cut interesting line to allow two tubes join together;
Technical Parameters
Model
GN-NCF type
GN-CFD type
GN-TPF type
GN-CT type
Cutting Range

1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m

1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m
1.5*3m
2*4m
2.5*4m
2*6m
2.5*4m
Length: 3m -12m
Dia: 20mm- 200mm
Laser Output Power
500w-8000w
Laser Type
Fiber Laser
Max Moving Speed
80m/min
Max Cutting Speed:
35m/min
Cutting accuracy
≤ ± 0.03 mm/1000mm
Driving Mode
Double gear rack driving
Cooling Type
Water Cooling

Hot Sale--GN-CT6000 tube laser cutting machine

Main Features

1. Automatic loading system

without human intervention

2. Advanced control system

able to cut complex shape

3. World leading brand


IPG TRUMPF SPI laser source

4. Low energy consumption

High output and low manpower investment

5. Fast cutting speed

suitable for high-speed continuous production lines

6. Advanced chuck clamping system

Chuck center self-adjustment


Hot sale 1

GN-CFD3015-1000W-8000W


1. 32 inch one-piece operating system, integrate monitor, display, control panel into one, highly improved the user experience.
2. Automatic pallet changer performs table changing in 7 second ensure steady operating and easy access.
3. Enclosed protective cover, increased the security and environmental protection

Hot sale 2

GN-NCF3015-500W-1500W


1. The life time of key parts can reach 100000hours.
2. Precise rack bilateral servo motor driving system with highest response speed, empty travel reach to 70m/mn
3. The most advanced laser source with high photoelectric conversion efficiency rate up to 30%.

Custom-made type 1

GN-TPF3015-500W-1500W


1. Can process not only metal sheet but also tubes, flexible and versatile

2. Support extremely accurate and complex cut-future or geometry on tubes.

Custom-made type 2

GN-CT6000-500W-1500W



1. The most professional tube cutting machine
2.
It can also cut interesting line to allow two tubes join together(two round tubes).
3. Support extremely accurate and complex cut-future or geometry on tubes.


The Main Parts

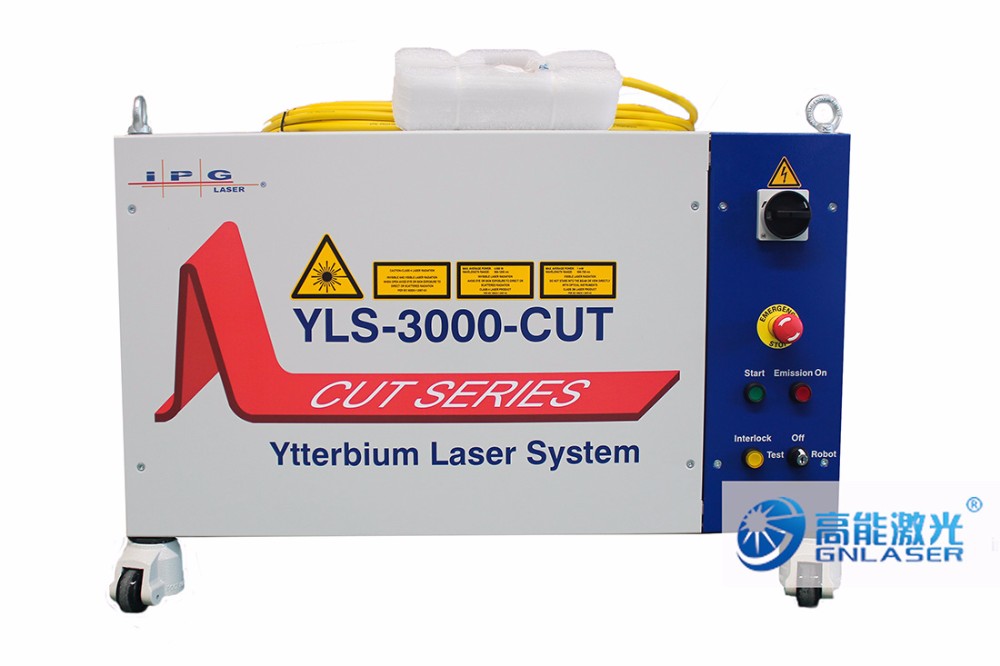

Laser Source

1. IPG, Trumpf-SPI, Raycus

2. No matter Chinese brand or imported brand, we only choose the first class!

Servo Motor

1. Fast responding ability

2. High accuracy

3. Excellent performance with large torque


Laser cutting head

1. Swiss brand

2. Support a variety of optical fiber interface, can be fit with all kinds of laser source

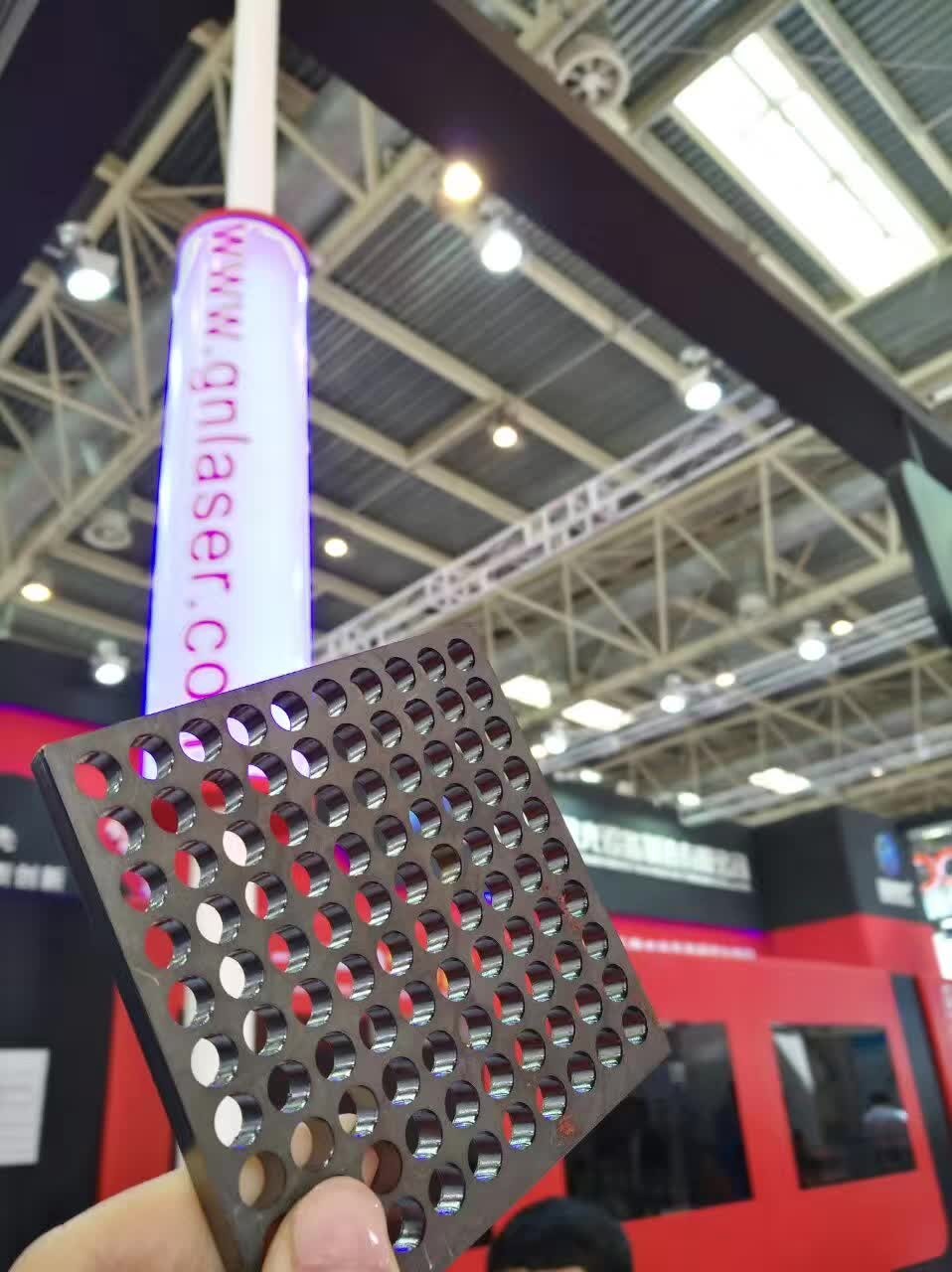

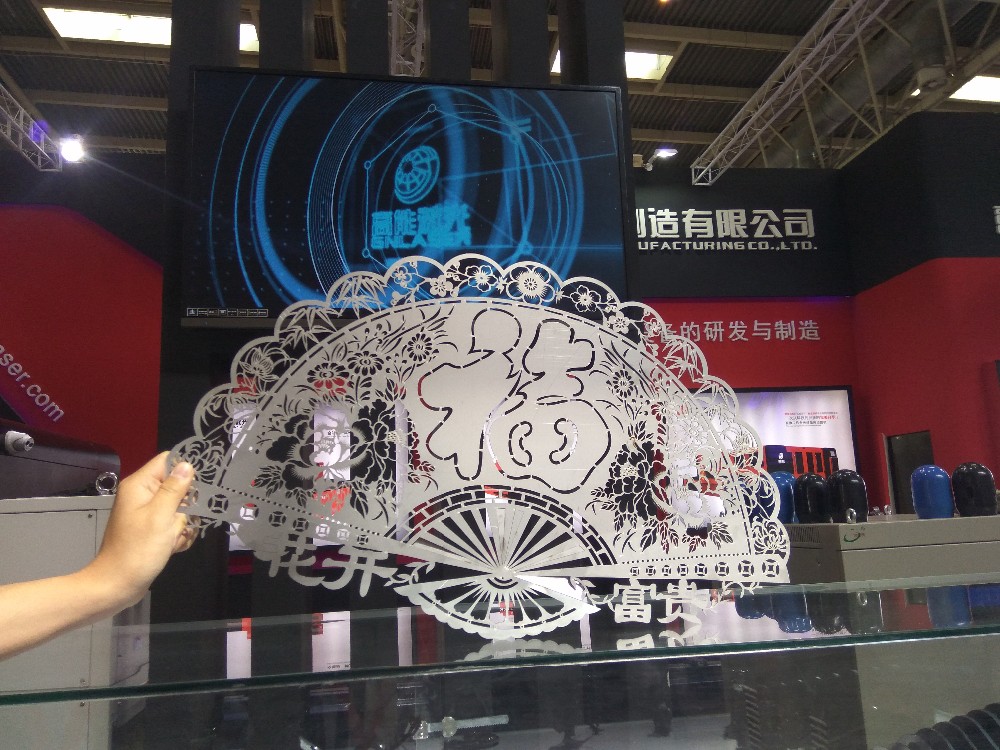

Exhibiiton

2017 China International Machine Tool& Tools Exhibition

Our Service

Pre-sale Service

Free Sample Support

We will supply testing report with videos or photos on you request.

Factory Visiting

We cordially welcome customers to visit our factory, you will be served with professional reception staff, convenience for your catering and ticket booking.

After-Sale Service

Free Installation and Training

Our after-sale service engier will offer free machine training and installation after machine arrive in clients' facotory.

2 years warranty time
Lifetime maintenance
Reply each customer's inquiry or questions in 24 hours
software upgrade in time
